This range is available in sizes DN6 to DN200, featuring 18 different models. With its ease of use, precision and flexibility the BX3 Clamp-On Ultrasonic Flow and Heat Meter range from Bell Flow Systems is an ideal choice for businesses seeking reliable and budget-friendly measurement solutions. The new Gel Free design means that fitting these models is now even faster than ever.

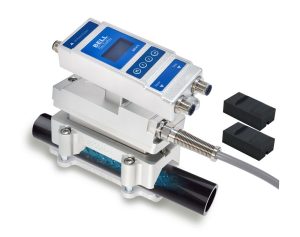

BFX3 Clamp-on Flow Meters are quick and easy to install, even by non-trained operators in under five minutes.. The clam-shell design of this range makes them a fast and reliable solution for permanent non-intrusive flow measurement applications. As the sensor separation distance is fixed, there is no need for adjustment on the pipe and once fitted they are not easily disturbed, unlike chain or strap clamped sensors. These models are ideal for clean liquids including water, chemicals, fuels and beverages. They provide remote outputs including 4-20mA, Modbus and Totalised Pulse.
BEX3 Heat meters consist of a flow sensor, temperature sensors, and a calculator. The flow sensor measures the amount of water passing through the heating/chilled system, while the temperature sensors measures the difference in temperature between the supply and return pipes. The calculator then uses this data to calculate the amount of heat energy consumed.
The BEX3 Clamp-On Ultrasonic Heat Meter range is the perfect solution for applications where heating / chilling system shutdowns are impractical or disruptive. These non-intrusive Heat Energy flow meters attach seamlessly to the exterior of pipes, eliminating the need for direct contact with the internal fluid. They operate by measuring the transit time of an ultrasonic signal sent between two sensors. The “time of flight” is precisely recorded in both directions, and the difference is calculated to determine the liquid velocity (V) inside the pipe. This is achieved through the equation: V = K * D * dt, where K is a constant, D is the distance between transducers, and dt is the time of flight difference.
These cost-effective clamp-on Heat meters utilize advanced ultrasonic measurement technology, allowing for fast, hassle-free installation without the need to cut into existing pipework. There’s no need to shut off water or liquid flow during installation, minimizing downtime. Additionally, GPRS/GSM data logging and remote access via a cloud server can be provided, offering real-time monitoring and enhanced control options.
With their ease of installation, precision, and flexibility the BX3 Clamp-On Ultrasonic Flow and Heat Meter range from Bell Flow Systems is an ideal choice for businesses seeking a reliable and budget-friendly heat clamp-on measurement solution.
